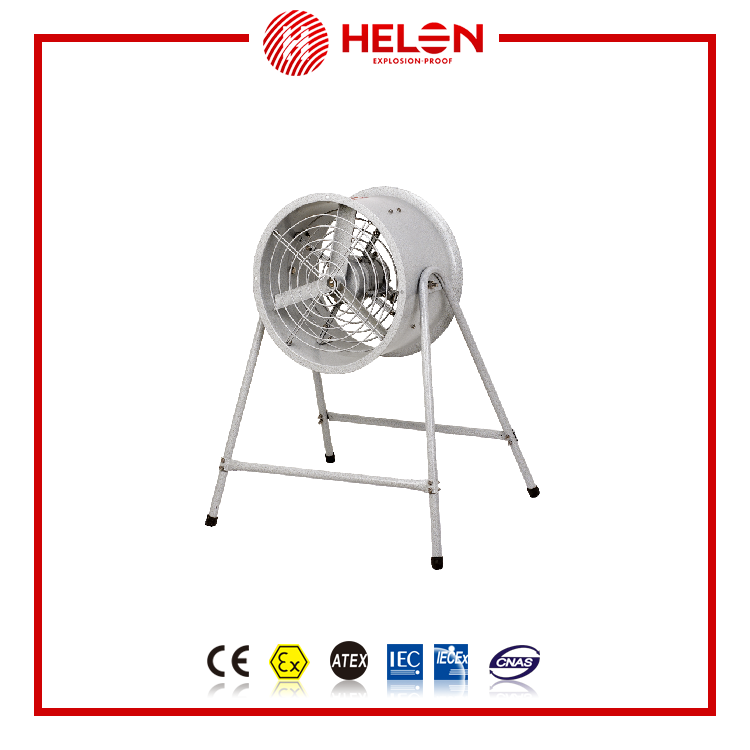

BFS- Series explosion-proof exhaust fan(ⅡB)
Pembelian Minimal :
1 Unit
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Banten - Tangerang
Update Terakhir :
15-08-2018 11:09
Dapatkan Spesifikasi Harga
BFS- Series explosion-proof exhaust fan(ⅡB) Produk Terbaik dari
Helon Internusa Flamindo Electrical Explosion Proof
Detail Produk
Applications
1. Can be used in Zone 1 and Zone 2,groupⅡA,ⅡB and explosive atmosphere;
2. Temperature class: T1~T4.
3. Indoor or outdoor (IP54).
4. Can be used in the chemical, petroleum refining, petroleum offshore platform, tankers, pharmaceutical, war industry and other dangerous place for ventilation, exhaust, cooling purposes.
Features
1. The product is composed of explosion-proof motor, vanes, air duct, protection net ,and so on.
2.The surface is high voltage electrostatic spraying, use stainless steel exposed fasteners
3. Wiring with cable.
Main technical parameters
| Type |
Rated |
Power(W) |
Air valume |
Main shaft speed |
Ex-mark |
Degree of |
Erosion- |
Inlet thread |
Cable outer |
| voltage (V) |
220V |
380V |
(m3/min) |
(rpm/min) |
protection |
proof class |
(G) |
dia.(mm) |
| BFS-300 |
|
180 |
180 |
24 |
1450 |
ExdⅡBT4Gb |
IP54 |
W, WF1 |
3/4 |
φ10～φ14 |
| BFS-400 |
220 |
180 |
180 |
48 |
| BFS-500 |
380 |
350 |
300 |
95 |
| BFS-600 |
|
650 |
350 |
145 |

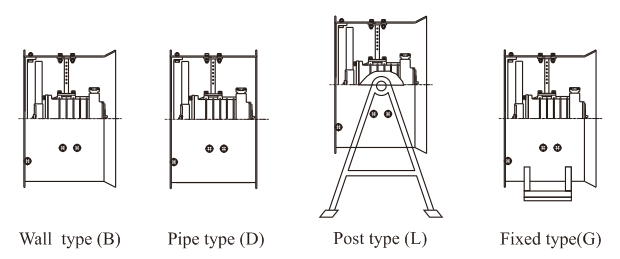

Outline & installation dimensions
| Size (mm) |
ΦA |
B |
ΦC |
Mounting hole |
| BFS-300 |
355 |
300 |
335 |
4-φ9 |
| BFS-400 |
455 |
300 |
435 |
4-φ9 |
| BFS-500 |
555 |
300 |
535 |
6-φ9 |
| BFS-600 |
655 |
300 |
635 |
6-φ9 |
