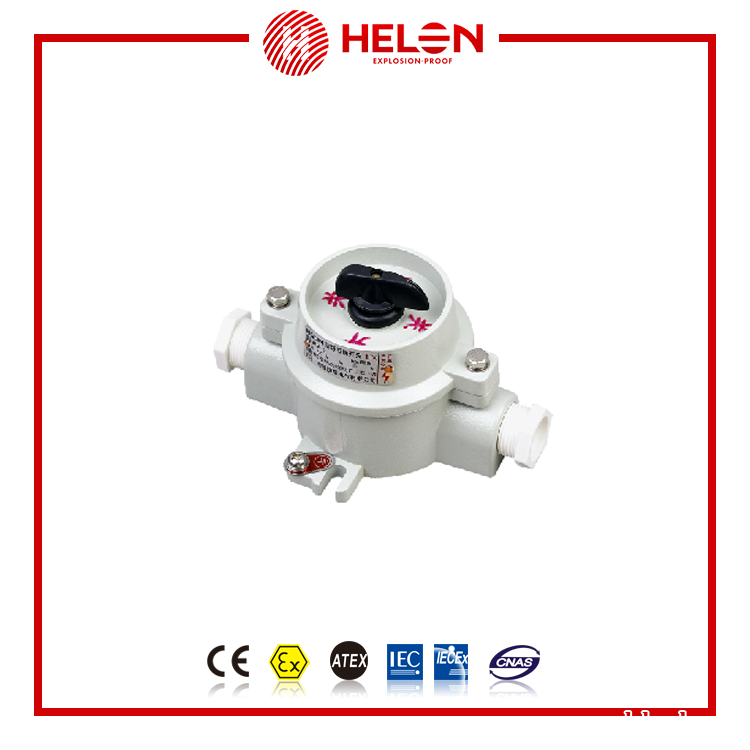

BZM-10 Series explosion-proof illumination switch(ⅡB, tD)
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Banten - Tangerang
Update Terakhir :
03-04-2017 19:16
Dapatkan Spesifikasi Harga
BZM-10 Series explosion-proof illumination switch(ⅡB, tD) Produk Terbaik dari
Helon Internusa Flamindo Electrical Explosion Proof
Detail Produk
Applications
1. Can be used in zone 1 and zone 2,groupⅡA,ⅡB and ⅡC explosive atmosphere and zone 20,zone 21 and zone22 flammable dust atmosphere.
2. Temperature class：T1~T6；
3. Indoor or outdoor IP65；
4. Can be used in the chemical, petroleum refining, petroleum exploitation, offshore platform, tankers, military industry and other dangerous place.
Main technical parameters
| Type |
Rated current(A) |
Rated voltage(V) |
Inner component |
Ex-mark |
| BZM-10 |
10 |
220/230 |
Explosive-proof switch |
Ex d eⅡB T6 Gb |
| Ex tD A21 IP65 T80℃ |
| Pole No. |
Degree of protection |
Erosion-proof class |
Inlet thread (G) |
Cable outer dia.(mm) |
| 1P+PE |
IP65 |
W, WF1 |
3/4 |
φ10～φ14 |
1): T6≤32A, T5≤63A; *: Please notice when ordering.
Outline & installation dimensions
Main technical parameters
| Type |
Rated current(A) |
Rated voltage(V) |
Inner component |
Ex-mark |
| BZM-10 |
10 |
220/230 |
Explosive-proof switch |
Ex d eⅡB T6 Gb |
| Ex tD A21 IP65 T80℃ |
| Pole No. |
Degree of protection |
Erosion-proof class |
Inlet thread (G) |
Cable outer dia.(mm) |
| 1P+PE |
IP65 |
W, WF1 |
3/4 |
φ10～φ14 |
1): T6≤32A, T5≤63A; *: Please notice when ordering.
Outline & installation dimensions
